Low MOQ 0.1- 5 micron pp pleated membrane filter cartridge for beer filtration

Our well-equipped facilities and exceptional good quality manage throughout all stages of production enables us to guarantee total shopper satisfaction for Low MOQ 0.1- 5 micron pp pleated membrane filter cartridge for beer filtration, We fully welcome shoppers from all around the world to ascertain stable and mutually effective enterprise interactions, to have a dazzling long run jointly.
Our well-equipped facilities and exceptional good quality manage throughout all stages of production enables us to guarantee total shopper satisfaction for beer filtration, micron filter cartridge, water filtration, Our company abides by the management idea of “keep innovation, pursue excellence”. On the basis of assuring the advantages of existing merchandise, we continuously strengthen and extend product development. Our company insists on innovation to promote the sustainable development of enterprise, and make us become the domestic high-quality suppliers.

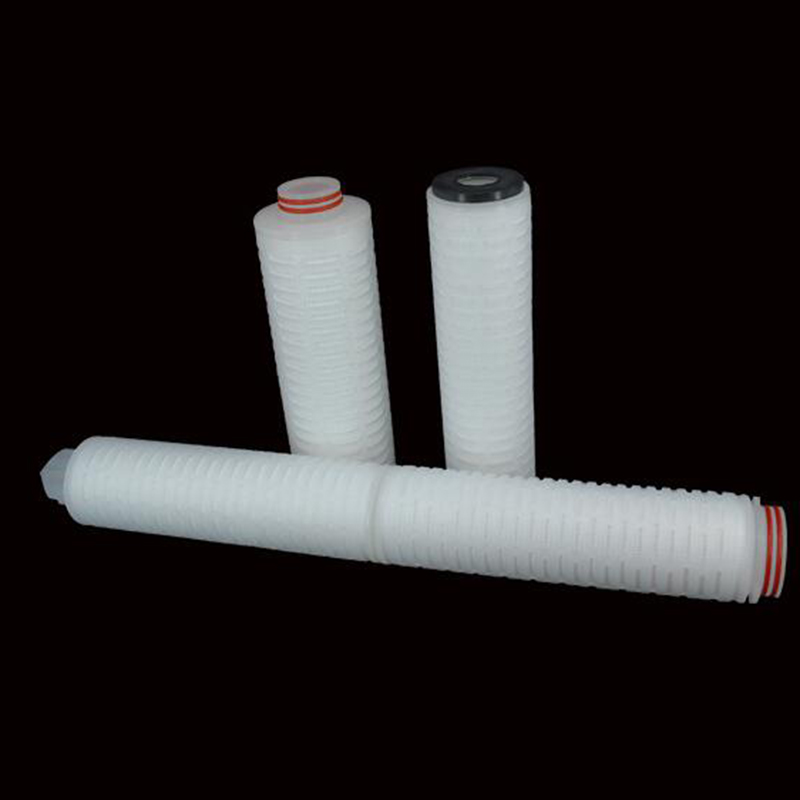

PP (polypropylene) filter cartridge

Polypropylene filter cartridges are precisely manufactured for usage in critical filtration applications within food, pharmaceuticals, biotech, dairy, beverages, brewing, semiconductor, water treatment & other demanding process industries.

Polypropylene pleated cartridges use the very latest gradient density microfiber media technology to provide a combination of excellent micron ratings, high flow rates, and high contaminant holding capacities. A special combination of polypropylene media with variation in the fiber diameter creates a gradient density matrix, ranging from open on the outside to finer on the inside, thereby providing a filter within filter, which considerably increases contamination holding capacity & throughputs.

All components used in the manufacturing process are biologically safe, chemically inert and meet FDA and other international quality requirements. Polypropylene offers extremely broad chemical compatibility making it suitable for many applications.

Key Specifications

◇ Removal rating: 0.1, 0.2, 0.45, 0.65, 0.8, 1.0, 3.0, 5.0, 10, 20, 30, 60 (unit: μm)

◇ Effective filter area: 0.4~2.0 m²  /10″

◇ Outer diameter: 69 mm, 83 mm, 130 mm

Operating Conditions

◇ Maximum working temperature: 80°C

◇ Sterilization temperature: 121°C; 30 minutes

◇ Maximum positive pressure difference: 0.42 MPa, 25°C

◇ Maximum negative pressure difference: 0.28 MPa, 60°C

◇ Thermal disinfection: 75~85°C, 30 minutes

Quality Assurance

◇ Filtrate: <10 mg per 10 inch cartridge (Φ69)

◇ Health security: in accordance with wading product related project detectioin

Ordering Information

HPP–□–H–○–☆–△
